Views: 0 Author: Site Editor Publish Time: 2026-09-24 Origin: Site
In tissue converting, basis weight dictates raw material expenditure and final product performance. Selecting an incorrect toilet paper GSM leads to misaligned market positioning, excessive web breaks, poor embossing definition, and compromised profit margins due to low yield per parent roll. Converters must evaluate parent roll specifications with precision. You need your production lines running efficiently while meeting consumer expectations for softness and strength.
This guide provides a technical framework for evaluating and selecting the optimal basis weight for parent rolls. We balance tensile strength, softness, ply configuration, machine runnability, and final packaging logistics. By understanding the mechanical and economic impacts of basis weight, plant managers can optimize raw material purchasing and maximize output quality without unnecessary downtime.
Market Alignment Dictates Weight: Economy toilet paper typically requires 12–14 GSM per ply, while premium tiers demand 16–18+ GSM to achieve target softness and absorbency.
Ply Count Alters GSM Strategy: A 3-ply configuration using lower individual GSM (e.g., 13 GSM) often yields better caliper and perceived softness than a 2-ply configuration using heavier paper (e.g., 18 GSM).
Material Composition Matters: Alternative fibers like bamboo and recycled pulp exhibit different tensile and wet-strength properties at the same GSM compared to virgin wood pulp, requiring basis weight adjustments.
Runnability vs. Yield Trade-off: Lower GSM increases roll yield and reduces fiber costs but introduces higher risks of web breaks, dusting, and reduced converting line speeds.
Logistics and Packaging Impact: Total finished GSM directly influences roll diameter, which dictates OEM packaging specifications, case dimensions, and shipping cube efficiency.
Table of Contents
Grams per Square Meter (GSM) measures the physical density and mass of the paper web. In tissue manufacturing, this metric is established at the paper machine, specifically as the sheet leaves the Yankee dryer and is scraped off by the creping blade. For converting operations, the GSM of the parent roll dictates the theoretical yield of the finished product. A parent roll billed at 15 GSM contains a specific mass of fiber per square meter, translating directly into the final weight of the retail roll.
Converters must distinguish between the nominal GSM provided by the paper mill and the actual conditioned GSM. Conditioned GSM fluctuates based on ambient humidity and moisture retention in your facility. Tissue paper typically holds 4% to 6% moisture. If your warehouse is highly humid, the paper absorbs water, increasing the actual weight and potentially throwing off your yield calculations and tension control settings on the rewinder.
Different tissue products require distinct basis weights to fulfill their functional requirements. Standard toilet paper generally ranges from 12 to 18 GSM per ply. This specific range provides the necessary structural integrity to survive the rewinder while ensuring rapid dispersion in water to prevent plumbing blockages. Bath tissue relies on dry tensile strength and minimal wet strength.
Facial tissue utilizes a lighter 12 to 15 GSM per ply, prioritizing surface smoothness and flexibility over wet strength. Commercial hand towels operate at a significantly heavier 22 to 26 GSM per ply. Hand towels require substantial mass to absorb water mechanically and maintain high wet tensile strength. Mills add Polyamidoamine-epichlorohydrin (PAE) resins to hand towels to prevent them from disintegrating when wet, a characteristic that would render bath tissue unsafe for septic systems.
Higher GSM does not always mean thicker or softer toilet paper. Creping and calendering also affect paper thickness and bulk. For example, a 14 GSM sheet with a higher crepe ratio may feel thicker and softer than a 16 GSM sheet with a lower crepe ratio. Converters should consider GSM, thickness, and bulk together when choosing parent rolls.
Converters should evaluate GSM based on finished roll weight, sheet count, roll firmness, packaging size, flushability, and production yield. The selected GSM should produce consistent roll quality, fit the required packaging, and provide enough yield to control the final cost per roll.
Tissue Category | Typical GSM per Ply | Primary Performance Focus | Converting Priority |
|---|---|---|---|
Economy Bath Tissue | 12 - 14 GSM | High sheet count, rapid flushability | Maximum yield, high-speed runnability |
Standard Bath Tissue | 14 - 16 GSM | Balance of softness and cost | Embossing definition, ply adhesion |
Premium Bath Tissue | 16 - 18+ GSM | Maximum softness, high absorbency | Bulk preservation, visual appeal |
Facial Tissue | 12 - 15 GSM | Surface smoothness, flexibility | Lotion application, folding efficiency |
Commercial Hand Towels | 22 - 26 GSM | Wet tensile strength, water retention | Web stability, structural integrity |
12–14 GSM toilet paper is mainly used for budget retail, commercial, and high-volume applications. It usually uses 1-ply or 2-ply designs to reduce material costs and increase production yield. However, lighter paper is more likely to break or create dust during converting, so accurate tension control is important for stable production.
14–16 GSM provides a good balance of softness, strength, and cost, making it suitable for everyday retail and private-label toilet paper. It has enough strength for embossing and other converting processes without tearing easily. For multi-ply products, glue should also be carefully controlled to prevent stiffness or ply separation.
16–18+ GSM toilet paper provides greater softness, absorbency, and strength for premium products. The stronger paper can support deeper embossing and create a thicker, more comfortable feel. However, higher GSM uses more raw material, reduces production yield, and may affect flushability if heavy multi-ply structures or too many wet-strength additives are used.
The structural build of the finished roll dictates its market perception and converting complexity. A converter can achieve a total finished weight of 30 GSM through multiple avenues. A 2-ply configuration using two plies of 15 GSM provides a standard, reliable structure. A 3-ply configuration using three plies of 10 GSM (or a slightly heavier 39 GSM total using three plies of 13 GSM) alters the physical dynamics of the roll.
Multi-ply configurations trap micro-pockets of air between the distinct layers of paper. This trapped air increases the perceived thickness, caliper, and softness far better than a single heavy ply of equivalent weight. Converters must weigh the cost of running multiple unwind stands, managing complex lamination, and aligning three separate webs against the enhanced consumer appeal of a 3-ply product.
Ply Configuration | Individual Ply GSM | Total Finished GSM | Perceived Softness | Converting Complexity |
|---|---|---|---|---|
1-Ply Heavy | 28 GSM | 28 GSM | Low (Stiff) | Low (Single unwind) |
2-Ply Standard | 15 GSM | 30 GSM | Medium | Medium (Basic lamination) |
3-Ply Premium | 13 GSM | 39 GSM | High (Trapped air) | High (Precise web alignment) |
GSM affects both embossing quality and machine settings. Heavy paper, such as 18 GSM, may require more pressure to create a clear pattern, which can increase wear on embossing rolls. Light paper, such as 13 GSM, is easier to tear during embossing. Converters should adjust web tension and embossing pressure based on the GSM to maintain stable production and clear patterns.
Higher GSM and greater paper thickness can increase the finished roll diameter. For example, changing from 14 GSM to 16 GSM without adjusting sheet count or winding tension may produce a larger roll that does not fit existing packaging. The larger size can also affect log saw settings, pallet capacity, and shipping efficiency, so GSM should be matched with the required roll and package dimensions.
Virgin wood pulp combines hardwood and softwood fibers to balance softness and strength. Hardwood fibers such as eucalyptus improve surface softness, while longer softwood fibers provide better tensile strength. A higher softwood content may allow parent rolls to run at a lower GSM, such as 13 GSM, while more hardwood may require a slightly higher GSM for stable converting.
Recycled fibers are shorter and usually have lower tensile strength than virgin fibers at the same GSM. For this reason, recycled toilet paper may require a slightly higher GSM to reduce web breaks and maintain strength. For example, a 14 GSM virgin sheet may need to increase to about 15–15.5 GSM when using 100% recycled fiber.
Bamboo and bagasse provide alternative fiber options for toilet paper production. Bamboo has long, strong fibers and can perform well at around 13–18 GSM. A 14 GSM bamboo sheet may provide similar tensile strength to a 15.5 GSM recycled sheet. Bagasse can also be used, but it may need to be blended with longer fibers to improve softness and strength.

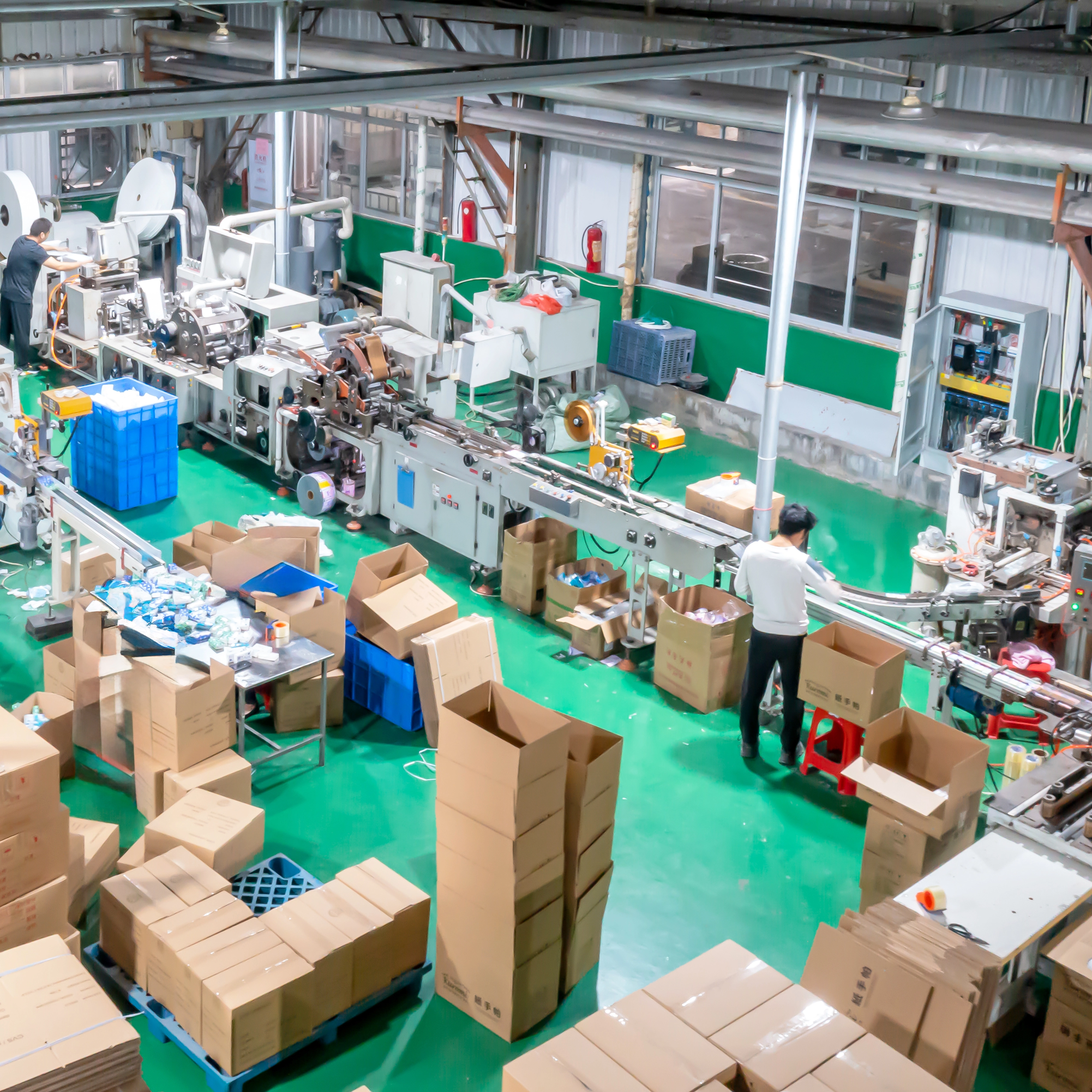

Low GSM parent rolls are more likely to break during unwinding, perforation, and rewinding, which can cause downtime and material waste. Driven unwind stands, tension control systems, dancer rollers, and suitable perforation blades can reduce this risk. Very light paper, such as 13 GSM, may be difficult to run on older machines without precise tension control.
Even a small GSM difference can affect production yield and cost. For example, receiving 15.5 GSM paper instead of 15 GSM means fewer meters of paper per ton and fewer finished rolls. To estimate actual yield, converters should calculate the usable parent roll area, divide it by the paper needed for each finished roll, and allow about 3%–5% for production waste.
Low GSM and highly creped tissue can create more paper dust during embossing, perforation, and cutting. Too much dust can affect machine parts, sensors, and workplace safety. Dust extraction systems, regular cleaning, and equipment maintenance are therefore important when processing lightweight parent rolls.
Lower GSM reduces the amount of wood pulp needed to produce toilet paper, helping manufacturers improve resource efficiency and support sustainability goals. It can also help products align with standards such as FSC and PEFC. The goal is to use less fiber while still maintaining the softness, strength, and quality consumers expect.
For premium toilet paper, 17–18 GSM can provide a good balance of softness, absorbency, cost, and material use. It can deliver a premium feel in 1-ply or 2-ply products without requiring heavy 3-ply or 4-ply structures. This helps manufacturers control fiber use and production costs while maintaining product quality.
Micro-embossing and other tissue technologies can improve thickness and softness without using heavier paper. These methods may allow manufacturers to reduce parent roll GSM by 1–2 points while maintaining a similar feel and roll size. This can reduce fiber use, lower costs, and improve production yield.
Audit rewinder tension controls, load cells, and embossing station capabilities to determine the minimum viable GSM your machinery can handle without web breaks.
Define the exact consumer tier and packaging dimensions required, ensuring the selected GSM and caliper will fit existing polybag specifications without adjusting log saw clamps.
Request parent roll samples spanning a 2 to 3 GSM range from suppliers and conduct pilot testing to evaluate actual yield, dusting levels, and roll firmness.
Demand detailed technical data sheets (TDS) from parent roll suppliers, verifying MD/CD (Machine Direction/Cross Direction) tensile strength alongside the stated GSM before finalizing bulk orders.
A: The standard basis weight for 2-ply bath tissue typically ranges from 14 to 16 GSM per ply. This results in a total finished weight of 28 to 32 GSM. This range provides the optimal balance of softness, tensile strength for converting, and rapid flushability for consumer use.
A: Bath tissue generally sits between 12 and 18 GSM per ply. Facial tissue is lighter, usually 12 to 15 GSM, prioritizing extreme softness over wet strength. Paper towels are significantly heavier, ranging from 22 to 26 GSM per ply, designed for high wet tensile strength and water absorption.
A: Lower GSM parent rolls are more fragile and susceptible to web breaks during unwinding, embossing, and perforation. Running lighter weights requires precise tension control systems and driven unwinds to prevent downtime. Heavier GSMs run smoother but accelerate wear on embossing rolls and cutting blades.
A: No. While premium products often use 16 to 18+ GSM for better absorbency and plushness, excessively high GSM can reduce roll yield, increase raw material costs, and cause the product to fail flushability standards. Premium feel is also heavily dependent on fiber quality and embossing techniques.
A: Basis weight (GSM) measures the actual mass and density of the paper fibers per square meter. Caliper measures the physical thickness of the sheet. A sheet can have a low GSM but a high caliper if it has a high crepe ratio or specific embossing pattern.
A: Yield is calculated by determining the total square meters of paper on the parent roll (Weight / GSM) and dividing it by the square meters required for one finished retail roll (Sheet Width x Sheet Length x Sheet Count). Variances in GSM directly alter the total linear meters available.
A: Bamboo tissue typically performs best between 13 and 18 GSM per ply. Because bamboo fibers are naturally longer and stronger than recycled or some hardwood fibers, converters can often run bamboo at the lower end of this range (13-14 GSM) without sacrificing machine runnability or product strength.
