Views: 0 Author: Site Editor Publish Time: 2025-07-11 Origin: Site
Imagine a single roll of toilet paper stretching longer than a football field—jumbo rolls are the unsung giants behind every tissue product you use. These massive paper reels, some spanning over 1,000 meters, silently fuel global hygiene industries, from hospitals to hotels. Yet, without advanced production lines, these giants could never efficiently transform into your household napkins or toilet paper.
Turning fragile pulp into durable, user-friendly products demands precision engineering. Modern jumbo roll production lines slash costs by 30–50% through bulk manufacturing, while cutting waste and energy use—making hygiene products affordable and sustainable. For businesses, this scalability means meeting soaring demand (like during health crises) without compromising quality or forests.
In this post, you’ll discover:
How jumbo rolls are born: From pulp to mega-rolls—meet the machines that handle it all.
Equipment breakdown: Rewinders, slitters, and AI-driven dryers—what makes them tick.
Sustainability wins: How these lines reduce water, energy, and plastic waste.
Future tech: Solar-powered systems and bamboo pulp innovations redefining the industry.
By the end, you’ll see why these colossal rolls—and the tech behind them—are the backbone of a cleaner, greener world.
Large-scale tissue paper production relies on specialized machinery to transform raw materials into the massive “parent rolls” (jumbo rolls) later converted into consumer products. Here’s how these systems work:

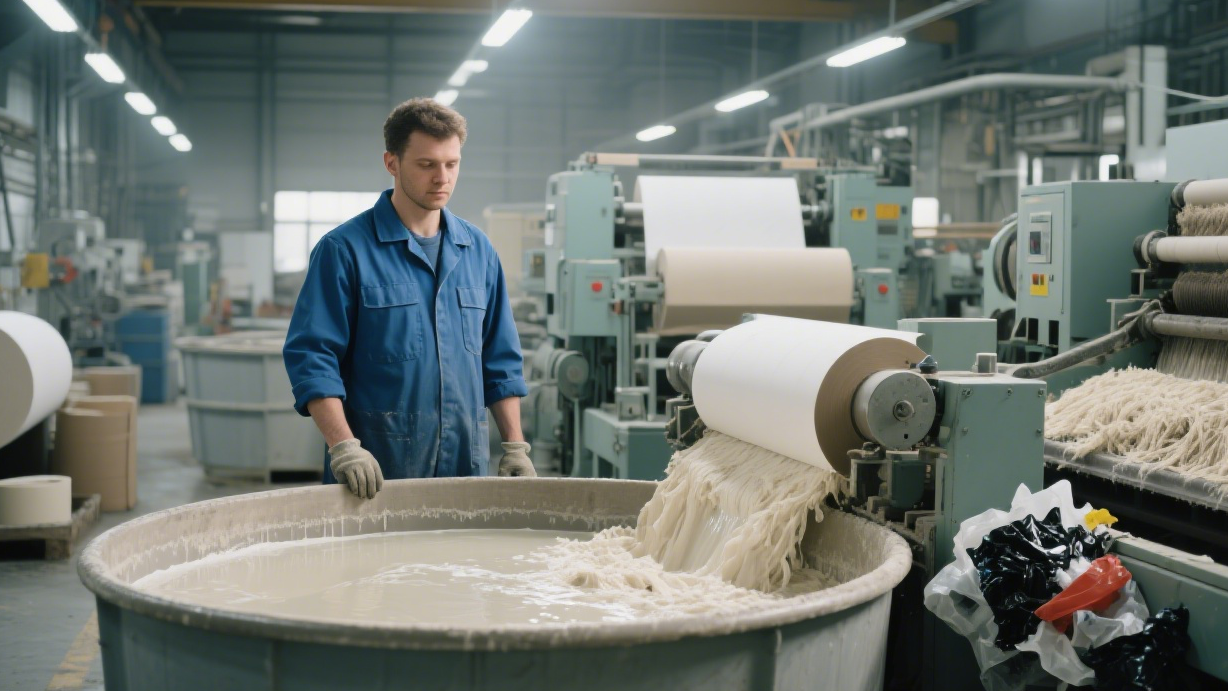

Pulp—from wood, bamboo, or recycled paper—is mixed with water to create a slurry. Contaminants (inks, plastics) are removed, and fibers are refined for softness and strength.
Recycling Integration: Waste paper is pulped, de-inked, and sanitized (using chemicals like sodium hydroxide).
Fiber Quality Control: Sensors monitor fiber length; shorter fibers boost softness, longer ones enhance durability.
This stage shapes pulp into thin, continuous tissue sheets:

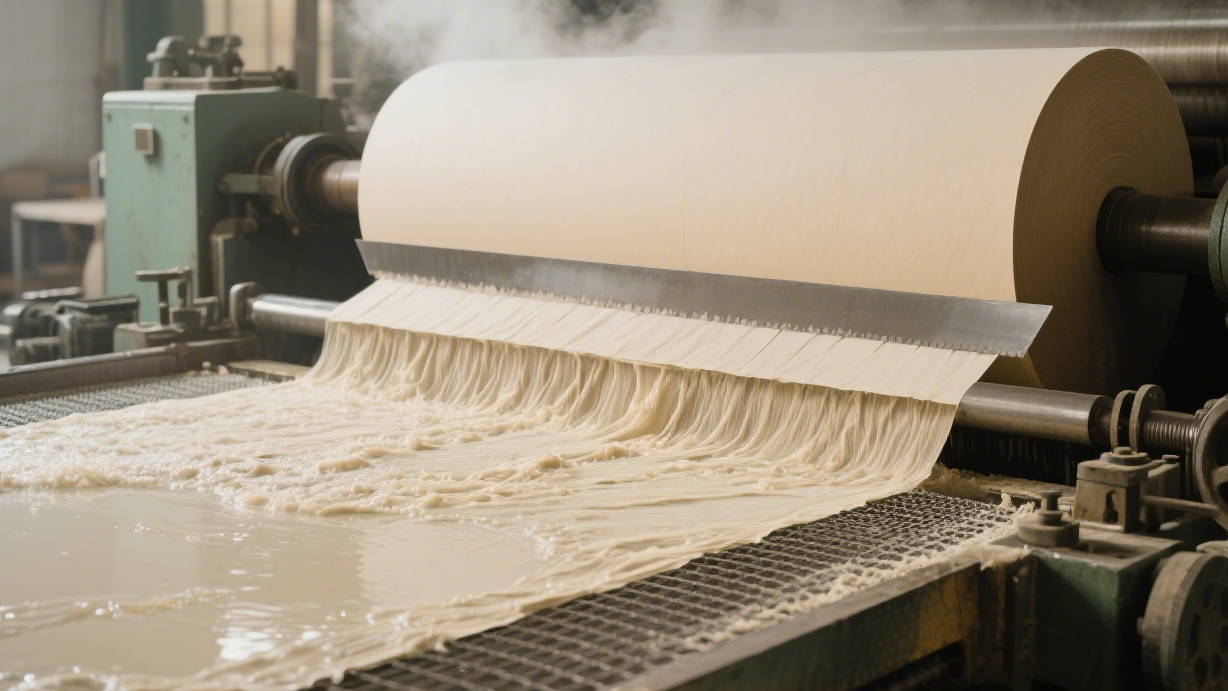

Forming Section: Pulp slurry spreads onto a fast-moving mesh screen. Water drains away, leaving a fragile “web” of fibers.
Pressing/Drying: The web moves to a Yankee dryer—a giant steam-heated cylinder—where it’s pressed and dried in seconds. This step determines the paper’s thickness and absorbency.
Creping: A blade scrapes the dried paper off the Yankee dryer, creating micro-folds. This crucial step makes tissue soft, fluffy, and stretchy.

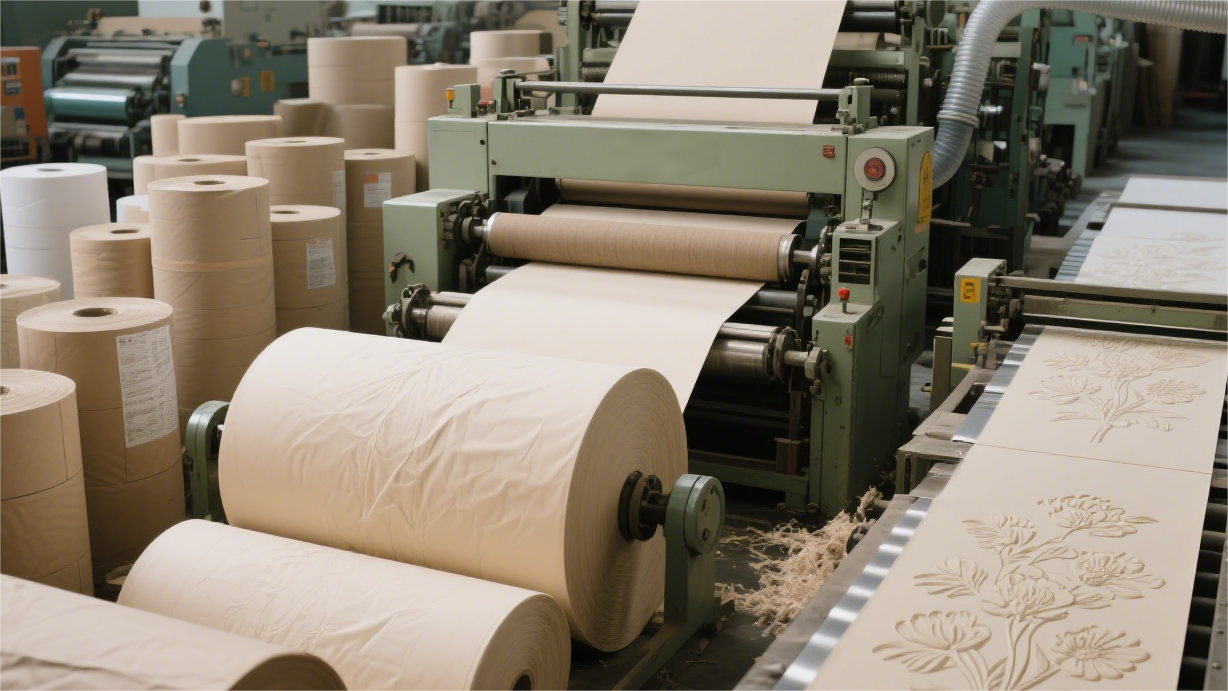

The dried, creped paper is wound into massive rolls (up to 1.2m wide and 1km long). Final steps include:
Rewinding: Tightens the roll for even density.
Slitting: Cuts wide rolls into narrower widths using razor-sharp blades or pneumatic cutters.
Dust Control: Vacuum systems remove loose fibers to prevent irritation.
Embossing: Patterns (e.g., floral designs) are pressed into the paper for texture or branding.
For: Large factories (5–20 tons/day output).
Features: Fully automated lines with IoT sensors, minimal staff. Include integrated pulp prep, high-speed drying (180m/min), and robotic packaging.
Example: 1880mm rewinder machines producing 5 tons/day.
For: SMEs or startups (0.8–2 tons/day).
Features: Compact, plug-and-play units. Often skip pulp prep (use pre-made pulp). Budget-friendly but slower (60–80m/min).
Example: Machines converting waste paper directly into toilet rolls.
Workflow: Mix virgin pulp (for strength) with recycled pulp (cost-saving). Separate processing lines merge before creping.
Sustainability Edge: Reduce water/energy use by 20–30% vs. traditional systems.
| Configuration | Daily Output | Speed | Best For | Key Equipment |
|---|---|---|---|---|
| High-Volume | 5–20 tons | 120–180m/min | Industrial plants | Yankee dryers, IoT rewinders |
| Modular/Mini | 0.8–2 tons | 60–80m/min | Small businesses | Compact slitters, manual embossers |
| Hybrid | 3–10 tons | 100–150m/min | Eco-focused factories | Dual-pulp feeders, water recyclers |
Note: Speeds vary based on paper weight and embossing complexity.
Key Takeaway: Whether producing jumbo rolls at industrial scale or with compact systems, modern lines prioritize efficiency and adaptability—turning raw pulp into versatile hygiene products we rely on daily.
Modern tissue jumbo roll production relies on specialized machinery and support systems to transform pulp into perfectly wound, defect-free rolls. Here’s how core equipment works:
Crescent-Former:
How it works: Pulp slurry is pressed between a mesh screen and a felt-covered roll, creating a thin, uniform web. Ideal for lightweight, soft tissues (e.g., toilet paper).
Pros: Gentle on fibers (preserves softness), energy-efficient, high-speed (up to 2,200 m/min).
Cons: Limited versatility for heavy-grade papers.
Fourdrinier:
How it works: Pulp spreads onto a flat mesh conveyor, draining water through gravity/vacuum. Best for stronger, multi-ply products (e.g., towels).
Pros: Handles diverse pulp blends, higher bulk/absorbency.
Cons: Slower speeds, higher energy use.
Key Takeaway: Crescent-formers dominate soft tissue production; Fourdrinier suits heavy-duty applications.
Rewinders transform creped tissue into tight, even jumbo rolls (up to 3m wide). Two main types:
Surface Rewinding:
Rolls contact a driven drum.
Pros: Simpler, cheaper; suits low-budget lines.
Cons: Risk of surface defects (wrinkles, stretching).
Center Rewinding:
Rolls wind around a motor-driven core.
Pros: Tension control prevents gaps/breaks; essential for premium tissues.
Tension Control:
Loose rolls (causing collapse during transport).
Over-tight rolls (tearing delicate paper).
Sensors adjust roll pressure in real-time to avoid:
Modern systems use IoT to auto-calibrate for fiber type and humidity.
Slitters divide jumbo rolls into narrower consumer-sized rolls:
Razor Cutting:
Blades slice paper like a guillotine.
Pros: Low cost, minimal maintenance.
Cons: Rough edges; dust generation.
Shear Cutting:
Rotating blades “scissor” paper smoothly.
Pros: Clean cuts, no dust; ideal for high-speed lines.
Automated Core Insertion:
Robotic arms insert cardboard tubes into cut rolls at 250 rolls/minute.
Eliminates manual handling and misalignment.
Dust Management: Vacuum suction removes loose fibers during slitting/rewinding, protecting worker health and product quality.
Steam Recovery: Condensers capture 80% of steam from Yankee dryers, recycling it for heating or power generation.
Basis Weight Sensors: Laser scanners detect uneven paper thickness (e.g., <±0.5g/m² variance).
Moisture Detectors: Infrared sensors maintain 5–7% moisture for optimal softness and strength.
Breakage Detection: Cameras halt production if tears or holes appear, reducing waste by 15%.
Predictive Maintenance: Vibration/temperature sensors forecast failures (e.g., bearing wear) days in advance, cutting downtime by 30%.
Real-Time Optimization: AI adjusts machine settings (speed, tension) based on pulp quality and environmental data.
| Equipment Type | Best For | Speed | Key Advantage |
|---|---|---|---|
| Surface Rewinder | Budget mini-lines | 60–100 m/min | Low cost, easy operation |
| Center Rewinder | Industrial production | 150–220 m/min | Flawless tension control |
| Razor Slitter | Recycled paper | 100–150 m/min | Minimal maintenance |
| Shear Slitter | Premium tissues | 180–250 m/min | Dust-free, smooth edges |
Note: Speeds vary with paper weight and roll width.
Selecting the right tissue jumbo roll production line balances your budget, output goals, and eco-impact. Here’s how to match your needs to the best setup:
Small-Scale (0.8–2 tons/day):
Ideal for startups or SMEs.
Uses modular/mini lines (e.g., compact rewinders, manual embossers) with speeds of 60–80 m/min.
Example: Converting waste paper into toilet rolls with minimal space.
Industrial (5–20 tons/day):
Automated lines with IoT sensors, robotic packaging, and speeds up to 250 m/min.
Requires high-volume rewinders (e.g., 1880mm width) and integrated pulp prep.
Benchmarks:
Water: Advanced lines recycle >80% of water (e.g., steam recovery from Yankee dryers).
Energy: Solar-powered drying or hybrid models cut consumption by 20–30% vs. traditional systems.
Tech Tips: Opt for vacuum suction press rolls (reduce steam use) and IoT-driven sensors for real-time adjustments.
| Cost Category | Small-Scale | Industrial |
|---|---|---|
| Equipment | $200K–$800K | $1M–$5M+ |
| Installation | $20K–$50K (plug-and-play) | $100K–$500K (custom foundations) |
| Training | 1–2 weeks (basic) | 4–8 weeks (advanced IoT/automation) |
Water Recycling: Closed-loop systems treat and reuse wastewater, slashing consumption by 50%.
Biodegradable Additives: Plant-based softeners (e.g., cornstarch) replace chemical agents, reducing toxicity.
Reduced Chemicals: Enzymatic de-inking for recycled pulp cuts sodium hydroxide use by 40%.
FSC (Forest Stewardship Council): Verifies wood pulp from responsibly managed forests.
ISO 14001: Mandates energy/emissions tracking and waste reduction plans.
Impact: Certified lines attract eco-conscious buyers and qualify for green manufacturing subsidies.
| Priority | Best Fit | Why? |
|---|---|---|
| Low Budget | Modular Mini-Line | Compact, low automation costs ($200K–$800K). |
| High Output | Industrial | Automated Speed (180–250 m/min) + bulk production. |
| Eco-Focus | Hybrid Model | Mixes recycled/virgin pulp + water recycling. |
The tissue jumbo roll industry is racing toward smarter, cleaner, and more efficient production. Here’s how cutting-edge tech is reshaping the game:
Modern lines now use AI-powered systems to boost speed and slash waste:
Real-Time Adjustments: Sensors monitor fiber quality, moisture, and machine stress, auto-tuning settings to prevent breaks or defects. Result: 20–30% less paper waste and 15% faster speeds.
Predictive Maintenance: AI analyzes vibration and temperature data from rewinders or slitters, flagging issues (e.g., bearing wear) before failures occur. This cuts downtime by 30%.
PLC Control: Touch-screen interfaces let operators input parameters (e.g., roll thickness, speed) once—AI handles the rest, from tension control to precision slitting.
Example: Fully automated lines with IoT can produce 20 tons/day with just 3–5 staff members.
Sustainability is no longer optional—it’s a competitive edge:
Solar-Powered Drying: Replacing gas-fired Yankee dryers with solar thermal systems reduces energy use by 40% and carbon emissions by up to 90%.
Closed-Loop Water Circuits: 95% of water in pulping and bleaching is recycled, cutting freshwater needs from 50m³/ton to just 5m³/ton.
Emission Control: Advanced vacuum systems capture 99% of dust during slitting, while steam condensers reuse 80% of waste heat.
Certification Boost: Factories adopting these techs easily earn ISO 14001 or FSC labels, appealing to eco-buyers.
Innovations in raw materials are making tissues softer, stronger, and greener:
Bamboo Pulp:
Grows 30× faster than trees, needs no pesticides.
Fibers are naturally antibacterial and 20% more absorbent than wood pulp.
High-Absorbency Additives:
Plant-based gels (e.g., cornstarch hydrogels) boost liquid retention by 50%—ideal for premium towels or medical wipes.
Replace chemical softeners, making tissues biodegradable and skin-safe.
Recycled Fiber Upgrades:
Enzymatic de-inking removes contaminants from waste paper without harsh chemicals, improving pulp brightness by 15%.
| Technology | Traditional Approach | Innovative Solution | Efficiency Gain |
|---|---|---|---|
| Drying | Gas-fired Yankee dryers | Solar thermal + steam recovery | 40% lower energy use |
| Fiber Source | Virgin wood pulp | Bamboo/recycled blends | 50% lower deforestation |
| Quality Control | Manual inspections | AI-driven sensors + auto-adjustments | 30% less waste |
| Water Usage | 50m³/ton (once-through) | Closed-loop recycling | 90% reduction |
Note: Data based on industry benchmarks.
A: Setup time varies by scale:
Modular/mini-lines (0.8–2 tons/day): Typically 2–4 months, including equipment delivery, installation, and basic operator training. These plug-and-play systems require minimal civil work.
Industrial lines (5–20+ tons/day): Takes 6–12 months due to complex integration (e.g., pulp prep, automated rewinding, IoT sensors), custom foundations, and extended staff training.
Critical factors: Equipment sourcing delays, regulatory approvals (e.g., emission controls), and factory layout adjustments can add 1–3 months.
A: Automated rewinders typically achieve ROI in 1.5–3 years through:
Labor reduction: 1 center-winder replaces 3–5 manual operators, saving ~$120K/year in wages.
Waste reduction: IoT tension control cuts defect rates by 20–30% (e.g., loose rolls, tearing), preserving raw material costs.
Output boost: Speeds up to 250 m/min increase daily production by 15–25% vs. semi-automatic systems.
| Cost/Component | Manual System | Automated Rewinder |
|---|---|---|
| Equipment Cost | $50K–$200K | $300K–$800K |
| Annual Labor Cost | $150K (5 operators) | $30K (1 supervisor) |
| Annual Waste Loss | $70K (8% defects) | $35K (4% defects) |
| ROI Period | N/A | ~2.2 years |
Note: Faster ROI in high-volume factories (>5 tons/day) due to scalability.
A: Address these frequent issues with targeted fixes:
Tension imbalances (causing telescoping or wrinkles):
Solution: Calibrate center-winder sensors; adjust pressure based on fiber moisture levels. Use IoT systems to auto-correct tension during runtime.
Dust accumulation (rough edges or contamination):
Solution: Install vacuum suction near slitters; switch from razor blades to shear cutters for cleaner cuts.
Softness inconsistencies:
Check: Yankee dryer temperature (optimize at 120–150°C) and creping blade angle (maintain 20–25°).
Core misalignment:
Prevent: Deploy robotic insertion arms + laser guides to ensure precise tube placement during winding.
Pro Tip: Run diagnostic tests quarterly—e.g., measure basis weight uniformity with laser scanners to catch early deviations.
From fluffy toilet paper to sturdy paper towels, tissue paper jumbo rolls are the unseen heroes powering everyday hygiene products globally. As we’ve explored:
Production lines transform raw pulp into massive parent rolls using specialized machinery like crescent-formers, Yankee dryers, and precision rewinders.
Equipment innovations—from AI-driven tension control to solar-powered drying—slash waste and energy use while boosting output.
Scalability is key, whether you’re a startup using mini-lines or an industrial giant automating 20-ton/day production.
These systems don’t just make rolls; they ensure hospitals, homes, and hotels never run out of essential tissue products.
When choosing your production line, remember:
Prioritize scalability:
Start modular if you’re new ($200K–$800K), but plan for IoT upgrades to handle future demand spikes.
Opt for hybrid models to mix virgin/recycled pulp flexibly.
Eco-compliance isn’t optional:
Adopt closed-loop water systems and biodegradable additives to cut environmental impact.
Pursue certifications (FSC, ISO 14001) to attract eco-conscious buyers and subsidies.
The Bottom Line: Whether you’re meeting daily needs or industry demands, efficient, planet-friendly jumbo roll production keeps the world running—one roll at a time.
