Mismatched parent roll dimensions carry a compounding financial impact that directly erodes converting margins. Every millimeter of unnecessary edge trim waste multiplies across thousands of meters of paper, creating severe raw material losses over a single production year. A common disconnect exists between procurement teams and production floors. Buyers often purchase standard sizes to secure bulk pricing, while operators struggle with web guiding issues, excessive trim, and frequent log saw jams.
Solving this disconnect requires a systematic, engineering-first framework. You cannot rely on rough estimates when setting up high-speed converting lines. Calculating the exact tissue jumbo roll width demands precision. You must account for specific converting line capabilities, end-product dimensions, and machine tolerances. This guide breaks down the exact variables needed to specify the correct parent roll dimensions for your facility.
Optimal tissue jumbo roll width is not a standard catalog number; it is a strict mathematical output derived from end-product width, lane count, and machine-specific edge trim requirements.
Exceeding maximum unwinder width causes immediate operational failure, while running undersized rolls leads to uneven tension, wrinkling, and embossing misalignment.
Factoring in web shrinkage during embossing, print registration margins, and the kerf (blade thickness) of the log saw is critical for accurate width calculation.
Aligning procurement specifications with exact converting machine tolerances and mill deckle sizes reduces raw material waste by up to 3-5% per production run.
Table of Contents
Defining baseline metrics for converting success requires looking at three operational pillars. You need maximum throughput, minimum raw material waste, and zero unplanned downtime. Achieving these metrics is impossible if your raw material dimensions fight against your machinery. The physical width of the parent roll dictates how smoothly the entire production line operates from the unwind stand to the packaging wrapper.
Edge trim is a necessary part of the converting process. It removes uneven deckle edges from the paper mill and ensures a clean final product. However, excessive edge trim destroys profitability. Consider a roll that is just 20mm wider than necessary. Over a single shift running at 500 meters per minute, that 20mm translates into hundreds of kilograms of wasted paper. Annually, this equals tons of raw material sent directly back to the pulper or recycling bin. You pay for paper that never reaches the consumer, inflating your cost of goods sold.
Web wandering is a physical reality on high-speed converting lines. As paper travels at hundreds of meters per minute, it naturally shifts side to side due to boundary layer air and minor tension variations. High speeds amplify this lateral movement. If your parent roll width is too close to the machine's maximum tolerance, you eliminate the necessary buffer zone. High-speed runs will inevitably push the paper beyond the machine frame. This causes immediate edge tearing. Edge tears quickly propagate across the web, resulting in web breaks. Recovering from a web break requires stopping the machine, re-threading the paper, and losing valuable production time.
Incorrect widths introduce severe operational risks. Oversized rolls strain the unwinder stands and risk scraping the machine side frames. Undersized rolls create uneven tension profiles across the web. When operators notice poor edge alignment or tension issues, their first reaction is to slow down the machine. Reducing machine speed compensates for dimensional mismatches but kills your throughput metrics. Running a machine at 70% capacity simply to accommodate poorly sized raw materials is an operational failure. Precise width matching allows operators to run machines at their maximum engineered speeds.

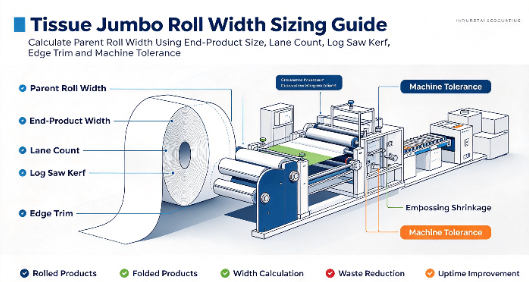

You cannot order raw materials based on guesswork. The final product configuration dictates the exact dimensions of the parent roll. Several core variables must be calculated before issuing a purchase order to a paper mill.
The final product dictates the parent roll requirements. Rolled products and folded products have entirely different converting paths. Rolled products like toilet paper and kitchen towels are wound into long logs before being cut. Folded products like facial tissue and napkins are slit and folded simultaneously. The math changes based on the product type. A toilet paper line requires calculating the width of the final consumer roll, typically between 95mm and 115mm. A facial tissue line requires calculating the width of the folding plates and interfolding lanes.
Converting lines process multiple lanes of paper simultaneously. You must multiply the end-product width by the number of cutting lanes. You also must account for the log saw kerf. The kerf is the physical thickness of the log saw blade. Every time the blade cuts through the log, it removes a small amount of paper as dust. If your log saw makes 26 cuts, and the blade is 1.5mm thick, you lose 39mm of paper to dust. This kerf must be added to your total width calculation. Failing to account for blade thickness results in the final consumer rolls being cut too short.
Industry-standard margins for edge trimming typically range from 15mm to 25mm per side. This allowance is mandatory. Parent rolls rarely have perfectly straight edges from the paper mill. Minor transit damage can also fray the edges. The edge trim removes these imperfections. The exact allowance depends on your machine's web guiding capabilities. Highly precise ultrasonic web aligners might only require 15mm of trim. Older machines with manual tension controls might need 25mm to guarantee a clean final cut.
Multi-ply products demand perfectly matched parent roll widths. When producing 3-ply toilet tissue or quilted kitchen towels, multiple webs converge at the embossing and lamination stations. If one Tissue Jumbo Roll is 15mm narrower than the others, the plies will not align perfectly. This prevents edge-to-edge ply bonding. Poor bonding leads to delamination during the converting process or when the consumer uses the product. All parent rolls feeding a multi-ply product must have identical width specifications.
Variable | Description | Typical Allowance | Impact of Miscalculation |
|---|---|---|---|
Target Roll Width | The exact width of the final consumer product. | Strictly defined by product specs (e.g., 100mm). | Consumer product fails quality control; packaging mismatch. |
Log Saw Kerf | Material removed by the thickness of the cutting blade. | 1.2mm to 2.5mm per cut. | Final rolls are cut too short; cumulative error across the log. |
Edge Trim | Waste removed from the outer edges of the web. | 15mm to 25mm per side. | Ragged edges on final product; web wandering off machine. |
Embossing Shrinkage | Web narrowing caused by deep embossing patterns. | 0.5% to 1.5% of total width. | Insufficient edge trim allowance at the end of the line. |
Your converting equipment sets the hard physical limits for your raw materials. You must audit your machinery to understand its absolute maximum and minimum tolerances before ordering paper.
Start by auditing the backstand of the converting line. The unwinder stand has hard physical limits. Measure the chuck-to-chuck distance. This is the absolute maximum width the machine can physically hold. You must also measure the frame clearance. Even if the pneumatic chucks can hold a 2800mm roll, the machine frame might only allow a 2750mm web to pass through without scraping the side panels. Exceeding these hard limits makes it impossible to load the roll.
The width of the steel and rubber embossing rolls dictates the maximum usable web width. If the paper extends beyond the embossing pattern, the unembossed edges will behave differently under tension. If the paper extends beyond the rubber roll entirely, the steel roll can cause edge crushing against the backing roll. For printed products, width margins are critical. If the web is too narrow, ink will bleed past the paper and onto the impression cylinders. This causes ink buildup, requiring operators to stop the machine and scrub the cylinders manually.
Glue application systems are highly sensitive to web width tolerances. Laminators apply a precise layer of adhesive to bond plies together. If you run a slightly undersized roll, the glue applicator will deposit adhesive beyond the edge of the paper. This glue transfers directly onto the machine rollers. Adhesive buildup on rollers causes the paper to wrap around the cylinders, leading to severe jams and hours of cleaning downtime. The web must be wide enough to catch all applied adhesive.
Edge sensors and dancer rolls manage web tension and alignment. These systems have specific operational ranges. If a roll is too narrow, the web might fall outside the sensor range. The web aligner will continuously hunt for the edge, causing the paper to oscillate wildly. This oscillation leads to wrinkling and uneven winding. Your parent roll width must fall comfortably within the detection range of your specific photoelectric or ultrasonic edge sensors.
Calculating the correct width is a strict mathematical exercise. You must use specific formulas based on your product type and machine configuration. Guessing leads to waste.

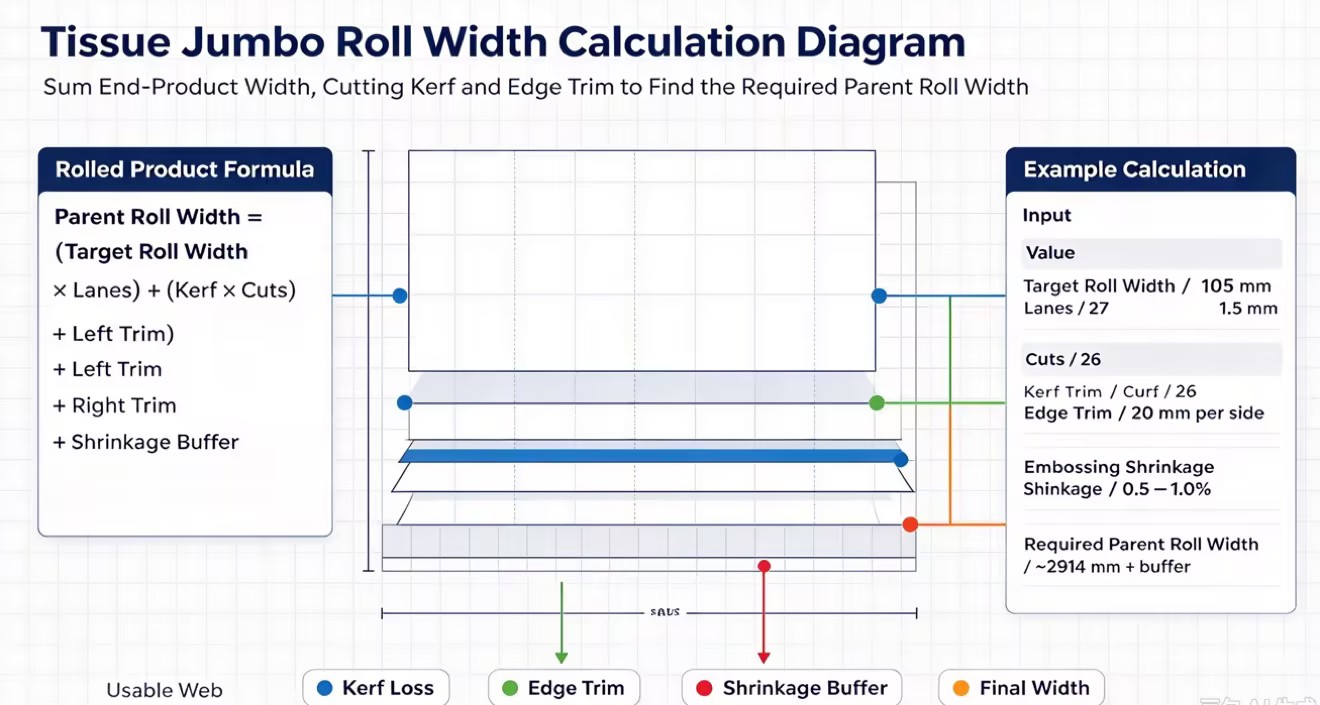

Rolled products require accounting for the final roll, the saw blades, and the trim. The calculation structure is straightforward. First, calculate the total usable width by multiplying the target roll width by the number of rolls per log. Next, calculate the total material lost to cutting by multiplying the log saw blade thickness by the number of cuts. Then, determine the trim allowance by adding the left edge trim and right edge trim. Finally, add all three values together to find the required parent roll width.
For example, producing 27 lanes of 105mm toilet paper requires 2835mm of usable web. Twenty-seven lanes require 26 cuts. If the blade kerf is 1.5mm, you lose 39mm to dust. Adding 20mm of trim per side adds another 40mm. The baseline calculation is 2835 + 39 + 40 = 2914mm.
Folded products use a different calculation structure. These lines rely on folding plates and slitting knives rather than log saws. You must calculate the width based on the interfolding machine lane widths. Multiply the unfolded sheet width by the number of folding lanes. Add the necessary edge trim for the outer lanes. Slitting knives used on folded lines typically do not have a kerf that removes material, so blade thickness is usually excluded from this specific formula.
Paper is not a rigid material. It stretches and shrinks under tension. Deep embossing patterns draw the paper inward. As the embossing rolls press a heavy quilted pattern into the web, the paper narrows slightly as it travels through the converting line. Specific creping ratios also affect how the paper behaves under tension. You must factor in a marginal width buffer to compensate for this shrinkage. If you calculate the exact width without accounting for embossing shrinkage, your final edge trim will be too narrow, resulting in a ragged final product. Adding 0.5% to 1.0% to the baseline calculation usually covers this shrinkage.
Even with correct calculations, implementation risks can derail your converting process. Avoiding common pitfalls ensures your raw materials perform as expected on the production floor.
A major point of confusion exists between roll diameter and roll width. Many buyers confuse the two. Roll diameter is often categorized by capacity, such as 9-inch or 12-inch dispensers for commercial use. This measurement refers to the thickness of the wound paper. Roll width is the actual web measurement across the cylinder. There is no universal standard size for width. Buying a roll simply because it is labeled standard guarantees a mismatch with your specific converting line.
Transport and handling physically alter the roll. The wrapping and transport of a heavy paper roll can compress the edges. Clamp trucks used in warehouses can deform the core. If the edges are crushed, the usable width decreases. If the core is deformed, you will face severe chucking issues on the unwinder. The roll might measure 2750mm at the mill, but edge damage during transit might reduce the usable, undamaged web to 2720mm. This ruins your carefully calculated edge trim allowances.
Purchasing from mills with poor slitting tolerances is a massive risk. You might order a width of 2750mm. If the supplier has a +/- 10mm tolerance, the roll might arrive at 2740mm or 2760mm. A 2760mm roll might scrape your machine frame. A 2740mm roll might not provide enough edge trim, causing log saw jams. You must demand strict slitting tolerances from your suppliers to ensure consistent converting operations.
Procurement must align with engineering. Buying raw materials is a strategic exercise in waste reduction and supplier management. You must communicate exact specifications to the paper mill.
Paper mills produce paper on massive machines with a specific master deckle width. Matching your required converting width to the paper mill's master machine deckle is a powerful strategy. If a mill has a 5600mm deckle, and you order two rolls at 2800mm, that equals 5600mm. The mill utilizes 100% of the paper. If you order two rolls at 2700mm, the remaining 200mm is orphan trim. The mill cannot sell this 200mm strip. They will pass the cost of that waste onto your purchase price. Optimizing your order to utilize the full master deckle prevents you from paying for the mill's waste.
Your purchase orders must be precise. Do not simply state a target width. Draft purchase orders that include acceptable millimeter tolerances for web width. Specify that a 2750mm roll must arrive between 2748mm and 2752mm. Clear documentation gives you the authority to reject shipments that fall outside your converting machine's capabilities.
Custom widths often carry a premium price. You must conduct a conceptual trade-off analysis. Evaluate when it is more cost-effective to pay a premium for a custom-slit roll versus buying a cheaper standard width and absorbing the trim waste. If a custom width costs 2% more but reduces your edge trim waste by 4%, the custom width is the mathematically superior choice. Do not let procurement focus solely on the initial price per ton.
Never load an unverified roll onto your converting line. Outline a strict protocol for receiving inventory. Your team must physically measure the web width upon arrival using a calibrated tape measure. Check the edge profile straightness. Verify core integrity before loading the roll onto the unwinder. Catching a deformed core or an undersized width at the receiving dock prevents hours of machine downtime on the production floor.
Matching parent roll dimensions to your converting machine is a strict engineering exercise. It is not a flexible procurement guideline. Precision dictates profitability. You must calculate the exact requirements based on your end products, log saw kerf, and machine tolerances. Partner with paper mills capable of guaranteeing tight slitting tolerances. Prioritize suppliers who optimize deckle sizes and provide consistent edge profiles. Take immediate action to audit your current operations.
Audit your current converting machine specifications, measuring hard limits on unwinders and embossing rolls.
Review historical edge trim waste data to identify sizing mismatches.
Recalculate your required widths factoring in log saw kerf and embossing shrinkage.
Update all supplier procurement specifications to include strict millimeter tolerances.
Implement a mandatory receiving inspection protocol to verify web width and core integrity before production.
A: There is no single standard width in the industry. Widths typically range from 1200mm to 3600mm. The exact size depends entirely on the paper machine deckle at the mill and the specific requirements of the converter's machinery and end products.
A: Normal edge trim waste ranges from 1% to 3% of the total web. In physical measurements, this is usually a 15mm to 25mm allowance per side. The exact amount depends on the machine's web guiding capabilities, operating speed, and raw material edge quality.
A: Running a narrower roll introduces severe mechanical limitations. It causes uneven wear on embossing rolls and leads to adhesive buildup on laminators. It also creates significant issues with web tension control and can cause edge sensors to lose track of the web.
A: You calculate the required width by multiplying the end-product width by the number of cutting lanes. Then, add the total log saw kerf (blade thickness multiplied by the number of cuts). Finally, add the required left and right edge trim allowances.
A: Yes. Heavy embossing patterns draw the paper inward, causing slight web shrinkage. This narrowing effect requires you to calculate a marginally wider parent roll to compensate, ensuring you still have enough edge trim allowance at the end of the line.
A: Roll width is the actual web measurement across the cylinder, dictating how it fits through the machine rollers. Roll diameter refers to the thickness of the wound paper, which dictates the total capacity or length of paper on the core.
